Event Tree

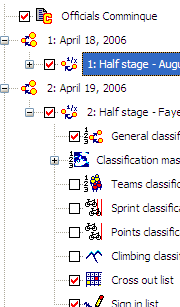

The configuration of an entire event is displayed as a tree structure in the left pane of the work space.

Contents

The tree has the following items:

• Root item, the event's file name

  • Stages, i.e. full stages or days
    • Half stages
    • • Time trial arrival list

      • General classification
      • General classification sorted on start no.
      • Masked classifications
        • Stage classification
        • General classification
      • Teams classification
      • Sprint classification
      • Points classification
      • Climbing classification
      • Most aggressive rider classification
      • Time trial starting order
      • Cross out list
      • Sign in list
      • Sign outs
      • Communiqué
    • Communiqué
• Competitors
• Teams

• Communiqué

The number of competitors, spare competitors and teams is also displayed in the event tree at the respective items, Competitors and Teams.

Navigation

Every item in the event tree can be selected by:

• Single-clicking on the item, using the left mouse button; or
• Walking to the item, using the arrow keys on your keyboard.

Note that keyboard users might need to switch views first to give focus to the event tree.

A tree item can be expanded by:

• Single-clicking on the "+" icon in front of the item, using the left mouse button; or
• Pressing the right arrow key on your keyboard once the item is selected.

Note that all tree items can be expanded at once through Expand all tree items in the View menu.

Selection

Depending on the type of item you select in the tree:

• An appropriate work view is displayed in the right pane of the work space; and/or

• Often the appropriate work view for an item will be the publication view, displaying the publication that is associated with the selected event item. Note that the root item has the table of contents associated with it.

• An appropriate dialog window can be opened, such as the communiqué editor, the arrival dialog and the sign outs dialog.

  These dialog windows can be opened through Edit selection... in the Edit menu or by double-clicking on the selected item.

Communiqué Numbering

When communiqué numbering is selected in the general settings, all tree items that have publications associated with them are equipped with check boxes to publish these publications.

Hiding the Tree

Through Event tree in the View menu the event tree can be hidden.

In the same way a hidden event tree can be shown again.

You can also hide the tree by double clicking on the edge that separates the tree from the work view on the right. Similarly you can have the tree shown again by double clicking on the very left edge of the document window.

Note that the event tree cannot be hidden when the right pane is displaying the blank work view, because doing so would not make any sense.
